Appearance

Module picture

Part

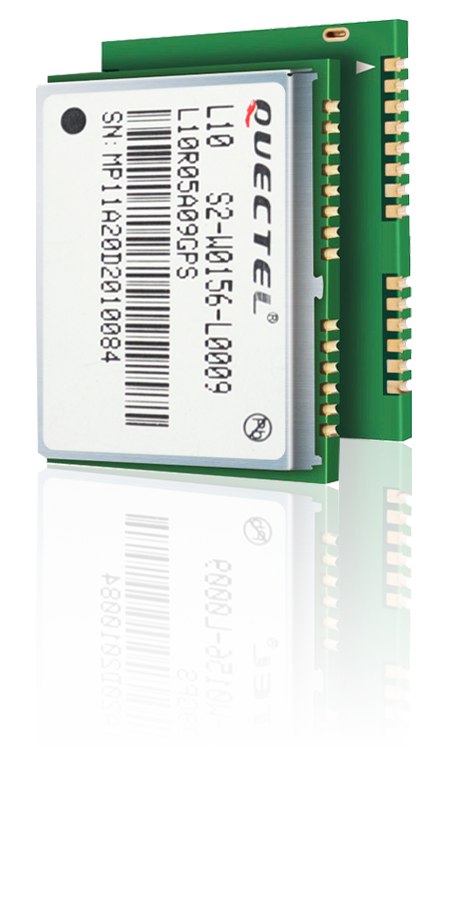

L10 GPS

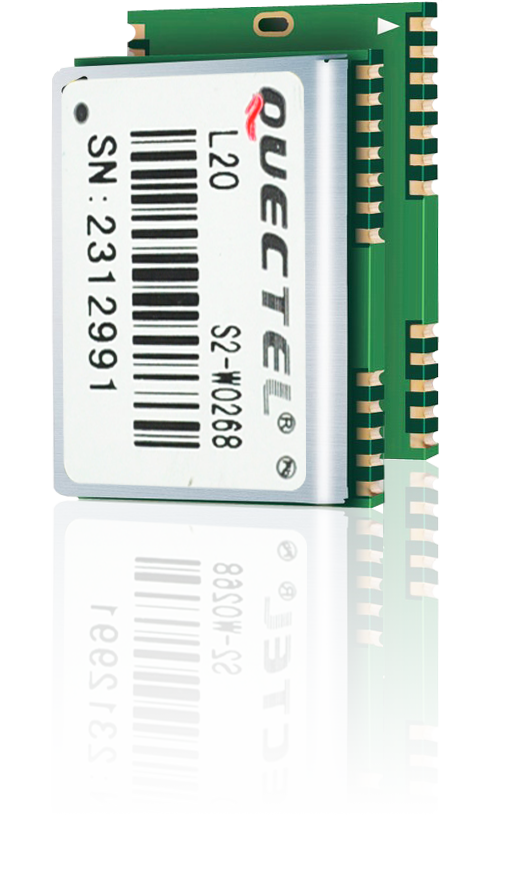

L20 GPS

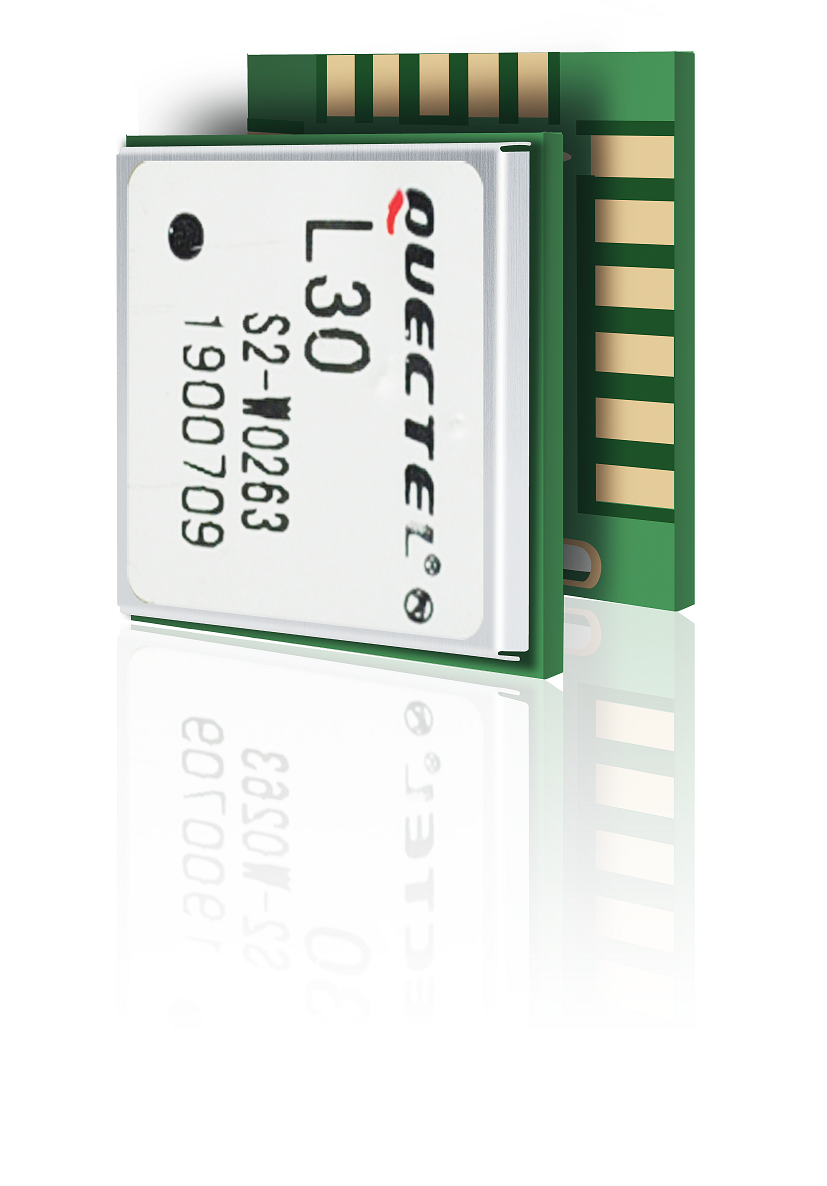

L30 GPS

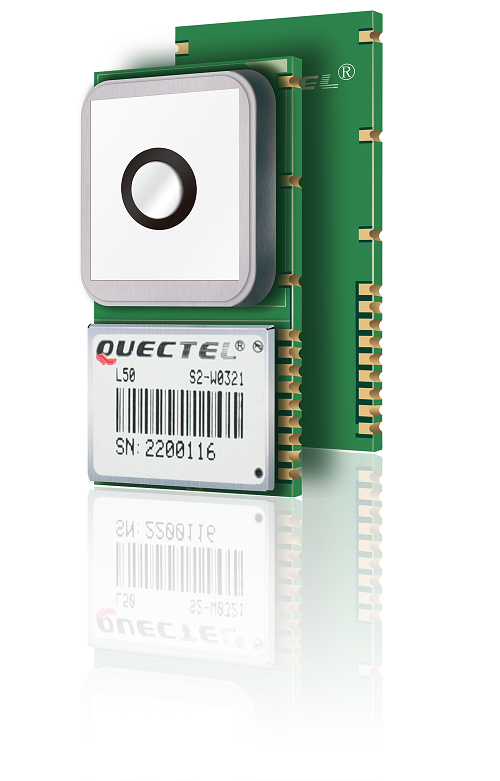

L50 GPS

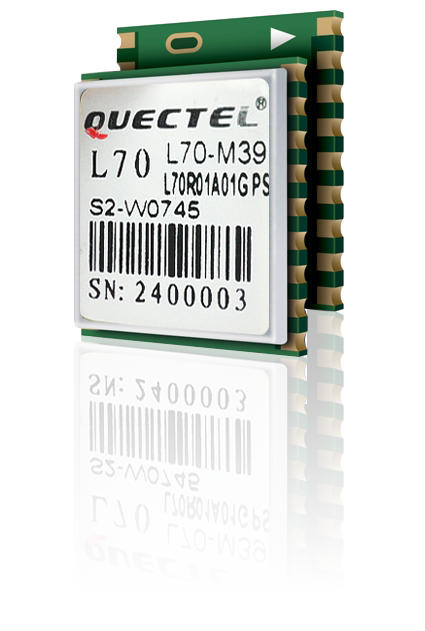

L70 GPS

Packaging

28－pin SMD
GPS Module

24－pin SMD
GPS Module

21－pin SMD
  GPS Module

24－pin SMD
  GPS Module

18－pin SMD
GPS Module

Certificates

Certificates

CE/FCC

CE

CE

CE

General Features

IC

MTK

SiRFsterIVTM

SiRFsterIVTM

SiRFsterIVTM

MTK

Dimensions

22.4*17.0*3.0mm

16.0*12.2*2.4mm

9.0*9.0*1.6mm

28.0*16.0*3.0mm

10.1*9.70*2.5mm

Weight

2.0g

1.0g

0.6g

4.0g

0.6g

Temperature Range

Operating

-40 ℃ to +85 ℃

-40 ℃ to +85 ℃

-40 ℃ to +85 ℃

-40 ℃ to +85 ℃

-40 ℃ to +85 ℃

Storage

-45 ℃ to +125 ℃

-45 ℃ to +125 ℃

-45 ℃ to +125 ℃

-45 ℃ to +125 ℃

-45 ℃ to +125 ℃

Reacquistion Time

<1s

<1s

<1s

<1s

<1s

L1 Band Receiver

Channels

22 TRK/66 ACQ

48 TRK

48 TRK

48 TRK

22 TRK/66 ACQ

C/A Code

Yes

Yes

Yes

Yes

Yes

SBAS

WAAS,EGNOS,MSAS

WAAS,EGNOS

WAAS,EGNOS

WAAS,EGNOS

WAAS,EGNOS,
MSAS,GAGAN

Sensitivity

Autonomous Acquisition

-148dBm

-148dBm

-145dBm

-148dBm

-148dBm

Reacquisition

-160dBm

-160dBm

-159dBm

-160dBm

-160dBm

Hot Start

-160dBm

-160dBm

-159dBm

-160dBm

-160dBm

Tracking

-165dBm

-163dBm

-160dBm

-163dBm

-163dBm

Self-AGPS

No

CGEE

CGEE

CGEE

EASY

TTFF

Cold Start

<35s

<35s,Autonomous 25s typ.With CGEE

<35s,Autonomous 25s typ.With CGEE

<33s,Autonomous 25s typ.With CGEE

<35s,Autonomous 15s typ.With EASY

Warm Start

<35s

<35s,Autonomous 10s typ.With CGEE

<35s,Autonomous 10s typ.With CGEE

<33s,Autonomous 10s typ.With CGEE

<25s,Autonomous 5s typ.With EASY

Hot Start

<1s

<1s

<1s

<1s

<1s

Electrical Data

Power Supply

3.0V to 4.3V

2.0V to 3.6V

1.71V to 1.89V

1.71V to 1.89V

2.8V to 4.3V

I/O Voltage

2.7V to 2.9V

2.7V to 2.9V

1.71V to 1.89V

1.71V to 1.89V

2.7V to 2.9V

Power Consumption

Acquisition

43mA(Passive Antenna)

57mA(Passive Antenna)

40mA@-130dBm

48mA@-130dBm

25mA@-130dBm

Tracking

38mA(Passive Antenna)

41mA(Passive Antenna)

36mA@-130dBm

38mA@-130dBm

22mA@-130dBm

Hibernate

2mA

7mA

17uA

20uA

500uA

Antenna Type

Active&Passive

Active&Passive

Active&Passive

Active&Passive

Active&Passive

Antenna Power

External or Internal

External or Internal

Internal

External

External or Internal

Interfaces

UART

Yes

Yes

Yes

Yes

Yes

 I2C

No

No

Yes

Yes

No

SPI

No

No

Yes

No

No

 I2C(For EEPROM)

No

Yes

Yes

Yes

No

Reset

Yes

No

Yes

Yes

Yes

Wakeup

Yes

Yes

Yes

Yes

Yes

Time Pulse

Yes

Yes

Yes

Yes

Yes

Antenna Detection

Yes

No

No

No

No

Recommended Applications

Vehicle tracking

★★

★★

★★

★★

Security

★

★

★

★

★

Asset Tracking

★

★

★

★

★

Portable device

★

★★

★★

★★

★★

 Connected PND

★

★

★★

★

★★

GIS Application

★

★

★

★

★

Industrial PDA

★

★

★★

★

★★

Digitai Camera

★

★★
